MACD Guide: Trend and Momentum Analysis Made Simple

The MACD (Moving Average Convergence Divergence) is a two-in-one tool that shows both the direction of a trend and how much momentum is behind it, using two moving averages and a set of bars below your price chart.

When the MACD line crosses above its signal line, momentum is turning up, a buy cue. When it crosses below, a sell cue. When the whole thing sits above the zero line, the trend leans bullish. Below zero, bearish. That is the core, and it is enough to start.

Here is the part most beginners skip. MACD fires a lot of crossover signals, and plenty of them are noise, especially in flat, choppy markets. The skill is not spotting a crossover, it is knowing which ones to trust. The trick that separates steady traders from frustrated ones is using the zero line and the trend as a filter, so you only act on crossovers that agree with the bigger move.

Ignore the idea that MACD predicts the future. It is built from past prices, so it lags. It confirms a move rather than calling it in advance, and no setting changes that.

Where MACD Came From, and Why Traders Like It

Gerald Appel built the MACD in the late 1970s, and it has stayed on charts ever since. It shows up on nearly every platform alongside RSI as one of the two indicators almost everyone has seen.

Its appeal is that it does two jobs at once. Most indicators tell you either direction or strength. MACD gives you both from one window: which way the market leans, and how hard it is pushing. That two-in-one nature is why it survives while flashier tools come and go.

The name sounds heavy, but the idea is plain. It watches a fast average (12 periods) and a slow one (26 periods). When the fast one pulls away from the slow one, momentum is strong. When they drift back together, momentum is fading. Everything else on the indicator is just a way to see that gap clearly.

The Three Parts of the Indicator

Open MACD and you see three things working together. Read them as a set, not one at a time.

The MACD line. This is the fast average minus the slow one. When it is positive, short-term momentum is stronger than the longer trend. When it is negative, weaker. It rises and falls as those two averages converge and diverge, which is where the name comes from.

The signal line. A smoothed, slower copy of the MACD line, set to 9 periods. Think of it as a trigger. When the MACD line crosses over it, that is your cue.

The histogram. The bars in the middle measure the space between the two lines. Growing bars mean momentum is building. Shrinking bars mean it is fading. This is the part beginners ignore and pros watch closely, because the bars often shrink before the lines cross, giving you the earliest warning of a shift.

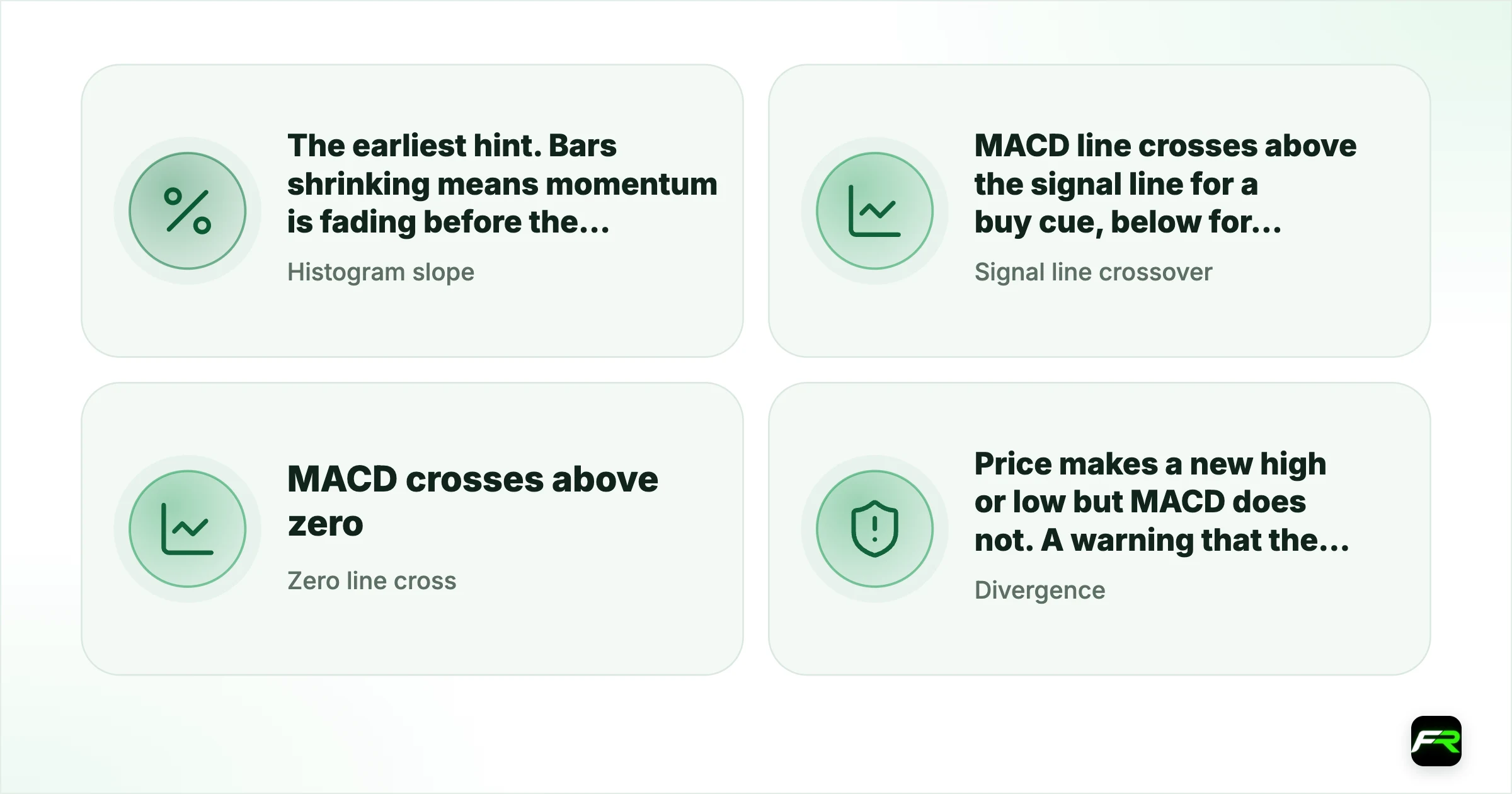

The Signals, from Earliest to Most Reliable

MACD gives you a few different signals, and they trade off speed against reliability. The fast ones catch moves early but misfire more. The slow ones lag but hold up better.

Signal	What MACD tells you
Histogram slope	The earliest hint. Bars shrinking means momentum is fading before the lines even cross. Underrated and worth watching.
Signal line crossover	MACD line crosses above the signal line for a buy cue, below for a sell cue. The most common signal, and the noisiest.
Zero line cross	MACD crosses above zero (bullish regime) or below (bearish regime). Slower but more reliable than a crossover.
Divergence	Price makes a new high or low but MACD does not. A warning that the trend is running out of fuel.

A Worked Example

Say EUR/USD has been climbing and MACD is sitting above the zero line, so the trend leans bullish.

Price pulls back for a few days. On the indicator, the histogram bars shrink toward zero as momentum cools. You do not sell, the bigger trend is still up. You watch.

The pullback ends. The MACD line turns and crosses back above the signal line while still above zero, and the histogram flips to growing bars. Three things now agree: trend up, crossover up, momentum building. That is a clean cue to look for a long, with a stop below the recent swing low.

Now the warning case. If price had pushed to a fresh high while the MACD line rolled over to a lower high, that bearish divergence would tell you the rally was tiring under the surface. You would tighten stops, not chase the top.

The Best Settings

The default is 12, 26, 9, Appel’s original numbers, and most traders never change them. They balance speed against noise well and work across pairs and timeframes. Start here.

Style	Common setting	Trade-off
Scalping	5, 13, 4	Faster, catches quick shifts, but more false signals.
Day trading	12, 26, 9	The default. Balanced for most pairs and timeframes.
Swing trading	12, 26, 9	Default works well on 4-hour and daily charts.
Position trading	19, 39, 9	Slower, fewer signals, but each one carries more weight.

A Simple Way to Start

Add MACD with the 12, 26, 9 default and, for a week, do not trade off it. Just watch. Note where the MACD line sits against the zero line, and see how the histogram grows and shrinks before the lines cross. That advance warning is the habit worth building.

Then use it as a filter, not a trigger on its own. Only take crossovers that agree with the zero line and the trend. Let the rest go. At FX Recap, the traders who get value from MACD treat it as a momentum gauge that confirms their read of the market, rather than a button that tells them to buy. The edge is in the signals you skip.
